The Angle Tells a Different Story
Diagonal Cracks
in Your Maryland
Foundation
A crack running straight up and down is common and often minor. A crack running at an angle is a different story.
It's usually the signature of one section of the foundation settling relative to another, and the angle itself carries information about what's happening below. OBW reads the angle, length, and material before recommending anything.
Twisting Stress, Not Simple Pressure
Why the Crack Runs
at an Angle
When one part of a foundation settles more than an adjacent part, the wall between the two is put under a twisting, shearing stress rather than simple downward pressure. Concrete and masonry resist that stress until they can't, and the crack that results travels diagonally, following the direction of least resistance through the material rather than straight down.
The material a wall is built from changes how the diagonal crack looks. In poured concrete, the crack tends to travel in a relatively smooth, straight diagonal line, since there's no mortar joint to redirect it. In brick or block walls, the same underlying force typically produces a stair step pattern instead, the crack following the weaker mortar joints in a jagged, stepped diagonal rather than a clean line.

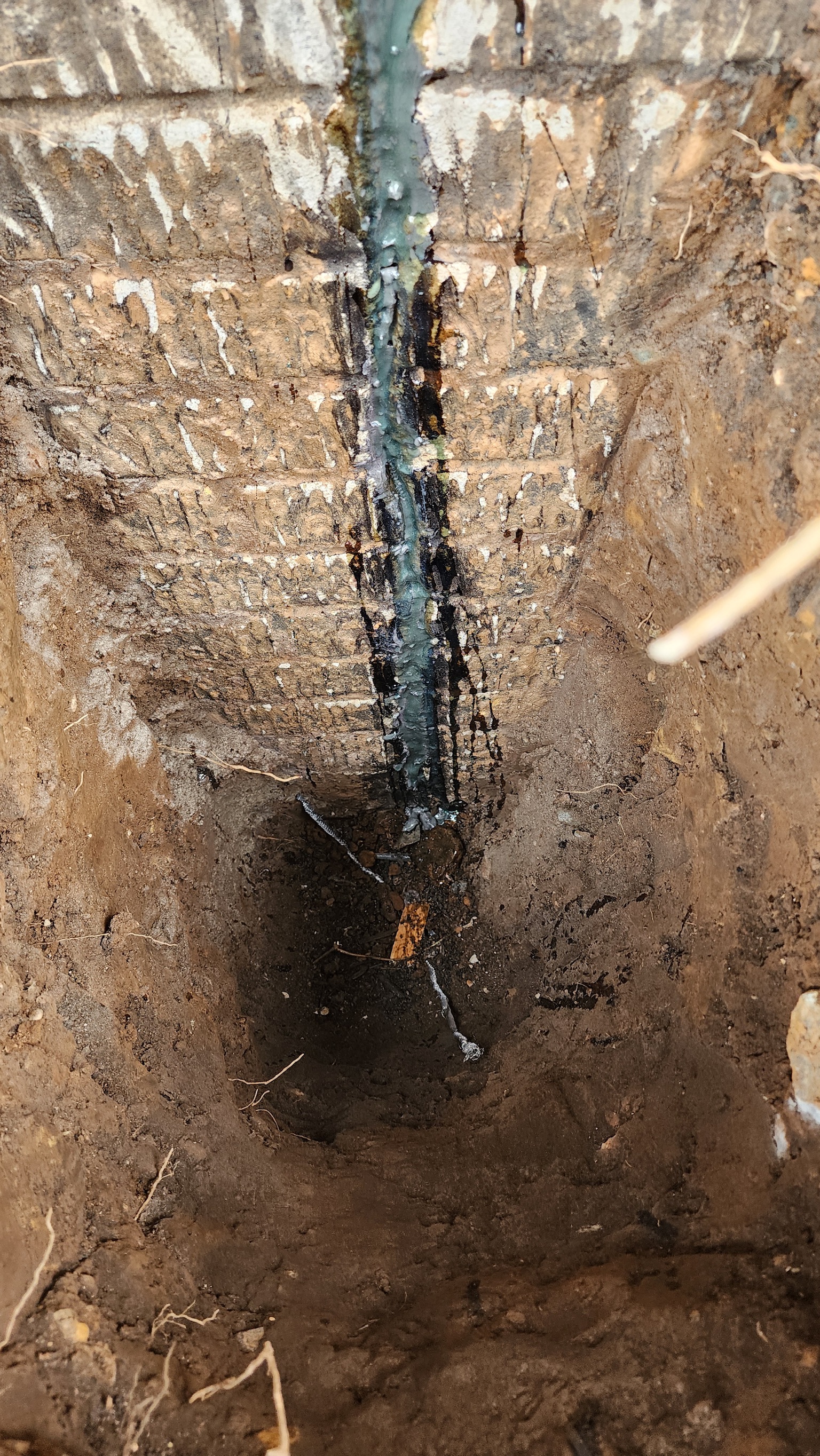

A settlement crack repaired at the point where twisting stress found its path of least resistance through the wall
Poured Concrete vs. Brick and Block
Warning Signs a Diagonal Crack
Needs More Than Sealing
If the wall itself shows signs of active structural distress alongside the crack, reinforcement may be needed before or alongside crack repair.
- A diagonal crack running the full height of a wall rather than a short section
- Visible displacement, one side of the crack sitting higher or further out than the other
- Spalling or crumbling of the block or concrete face near the crack
- A crack that's visibly widened or lengthened over the past year
- Sloping floors or door and window symptoms on the same side of the house
What's Included
OBW's Diagonal Crack
Diagnosis & Repair
The angle and material tell us what we're looking at before we ever discuss a repair method.
Angle & Length Measurement
We measure the crack's angle, length, width, and displacement, the data that tells us how much differential settlement it represents.
Material-Specific Reading
Poured concrete's smooth diagonal and brick or block's stair step pattern are read differently, since the same cause looks different in each material.
Wall Condition Assessment
We check for active structural distress, wall movement or spalling, alongside the crack itself.
Artery Method Crack Sealing
For structurally stable cracks, our proprietary Artery Method seals the crack against water intrusion.
Carbon Fiber or Wall Anchor Reinforcement
Where active distress is present, structural reinforcement addresses the wall before or alongside crack sealing.
Written Workmanship Guarantee
Crack repair and structural work is backed by a written workmanship guarantee. Ask your inspector for the terms that apply to your job.
The Process
How OBW Diagnoses and
Repairs a Diagonal Crack
Measure the crack. Read it against the wall material. Seal it or reinforce the wall, depending on what's found.

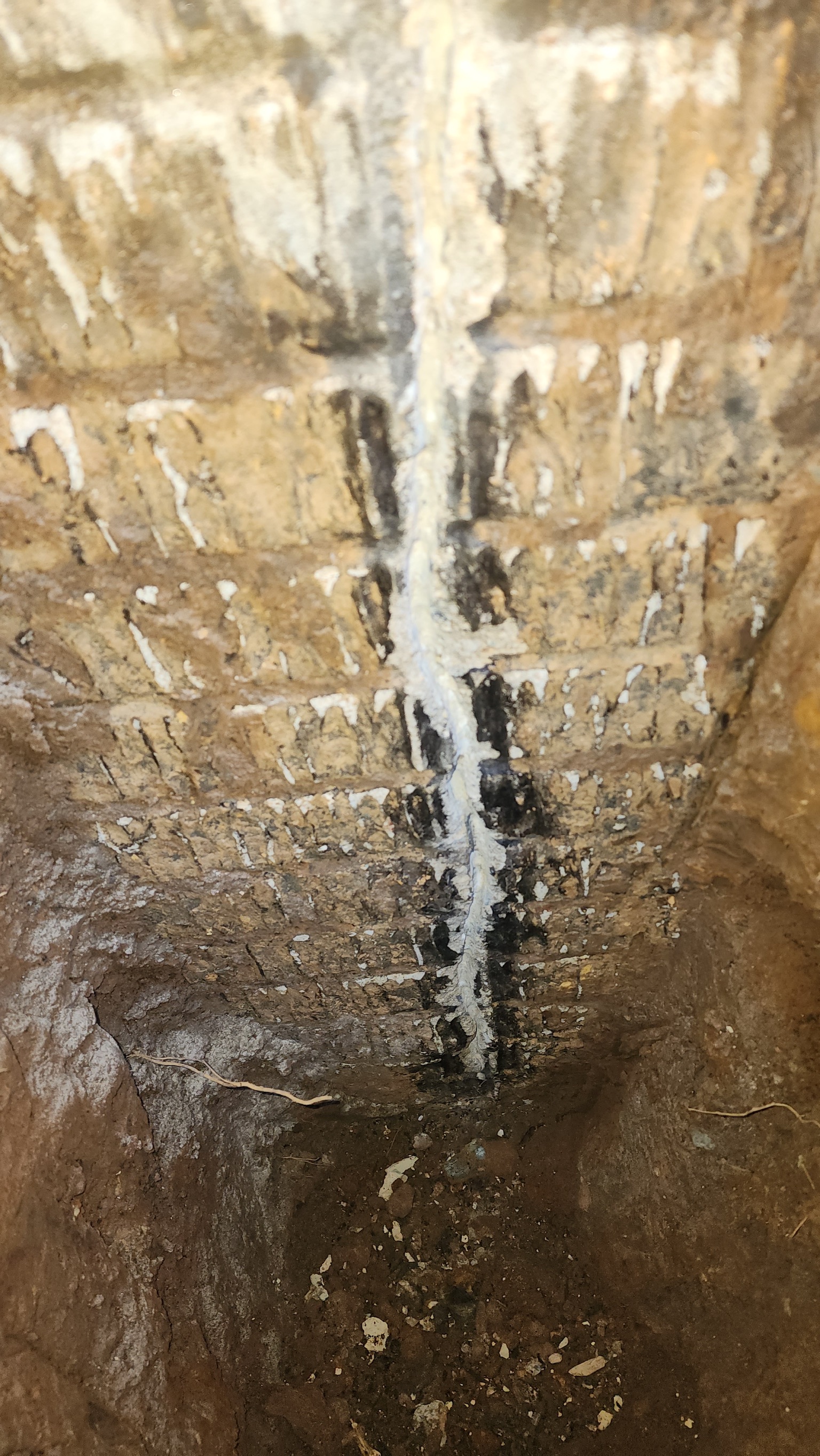

Crack Measurement
OBW measures the diagonal's angle, length, width, and any displacement, the baseline data for judging how much settlement it represents.

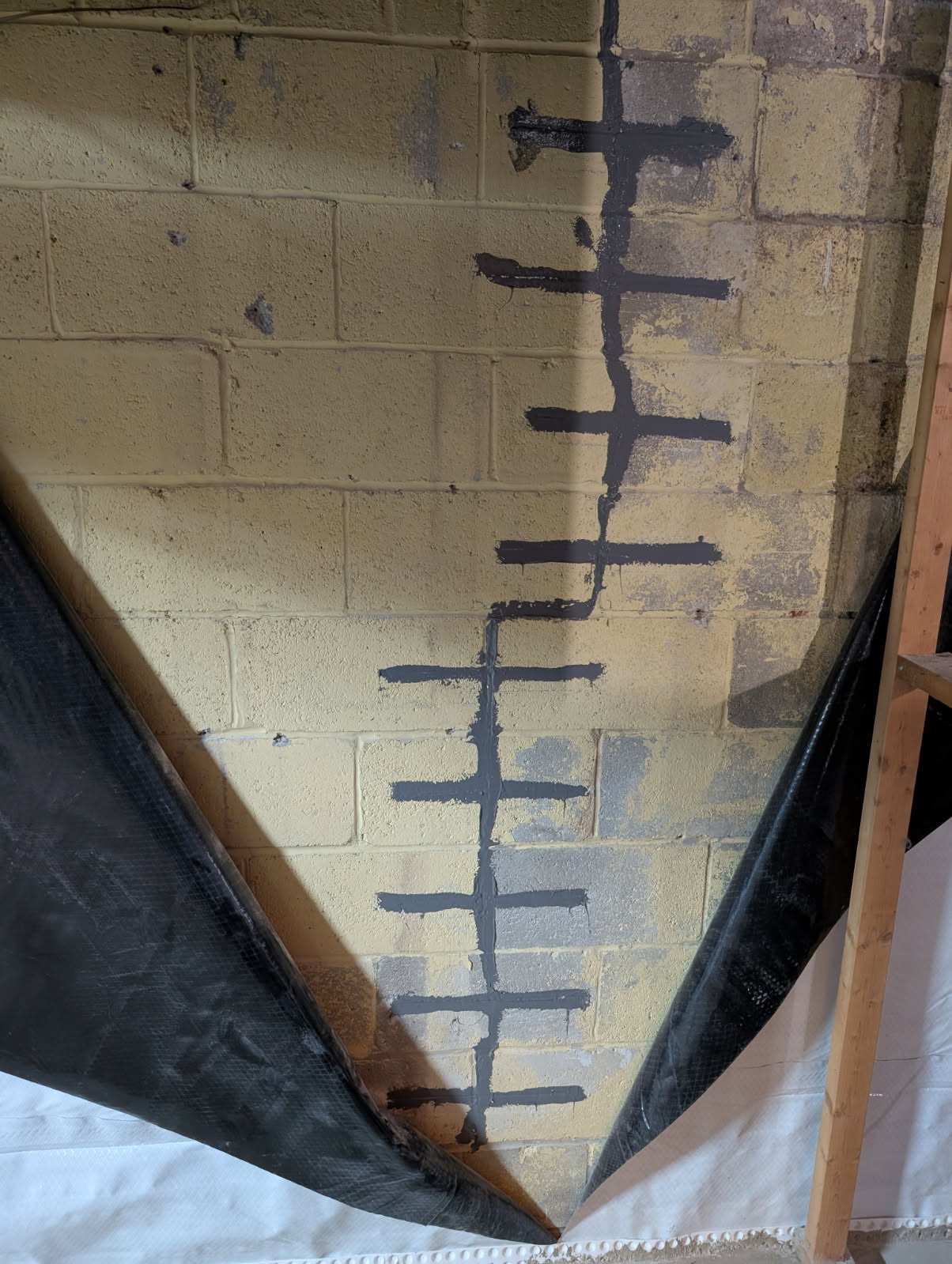

Material & Pattern Reading
The crack's appearance is read against the wall material, since poured concrete and brick or block show the same underlying cause differently.

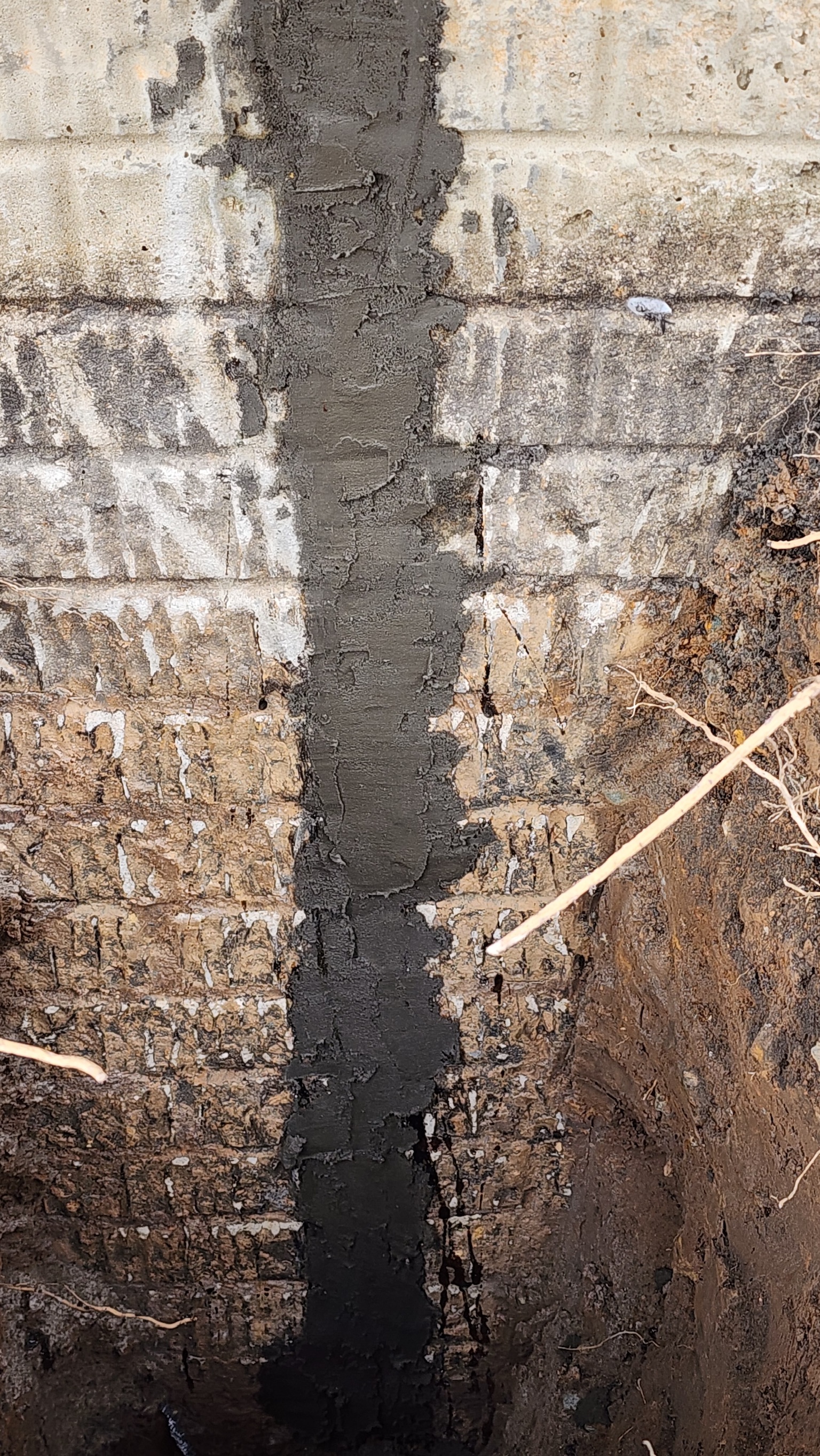

Structural Distress Check
The wall is checked for active movement or spalling alongside the crack, which changes whether reinforcement is needed.

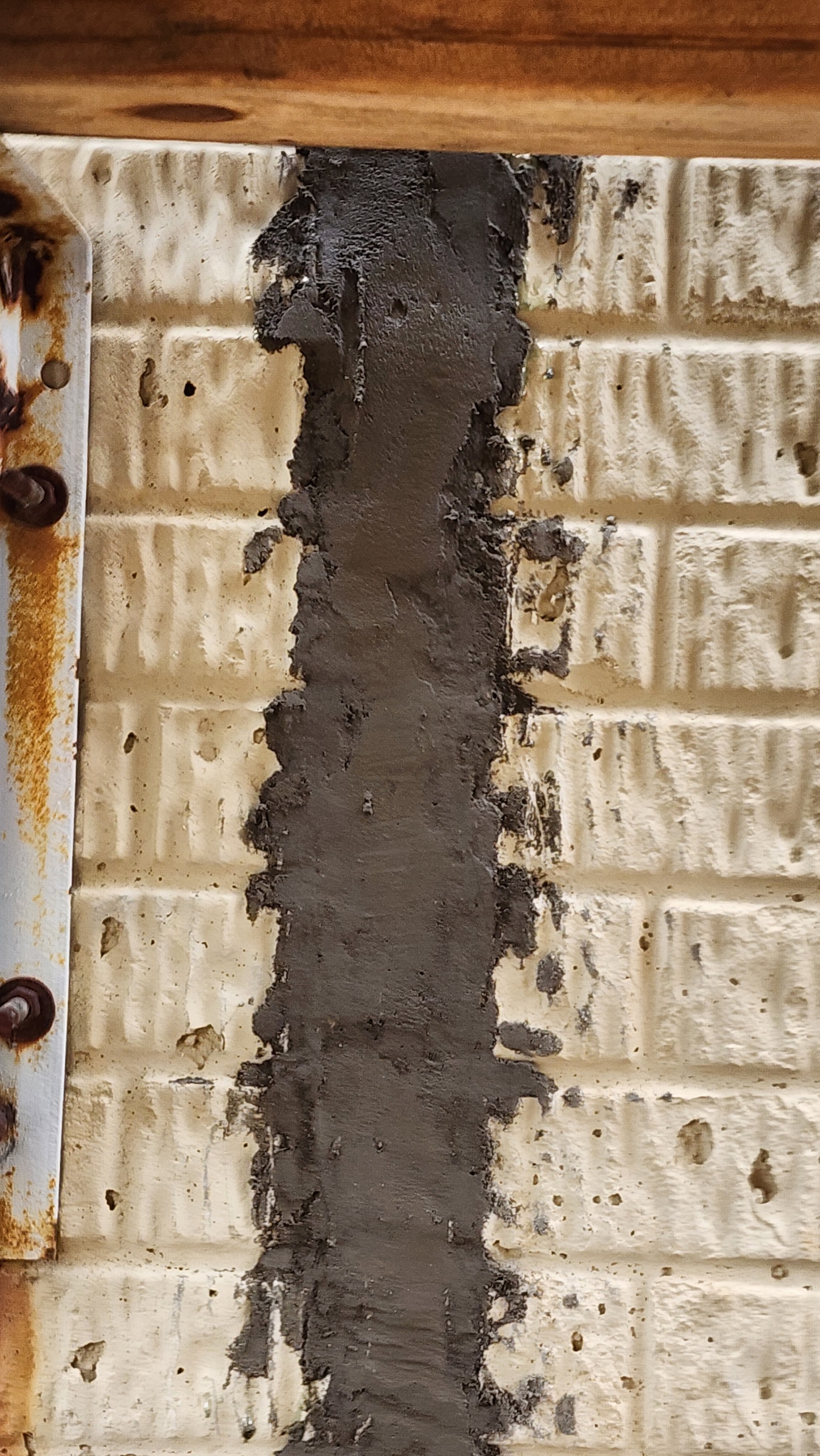

Sealing or Reinforcement
Stable cracks are sealed with the Artery Method. Active distress gets carbon fiber or wall anchor reinforcement first.

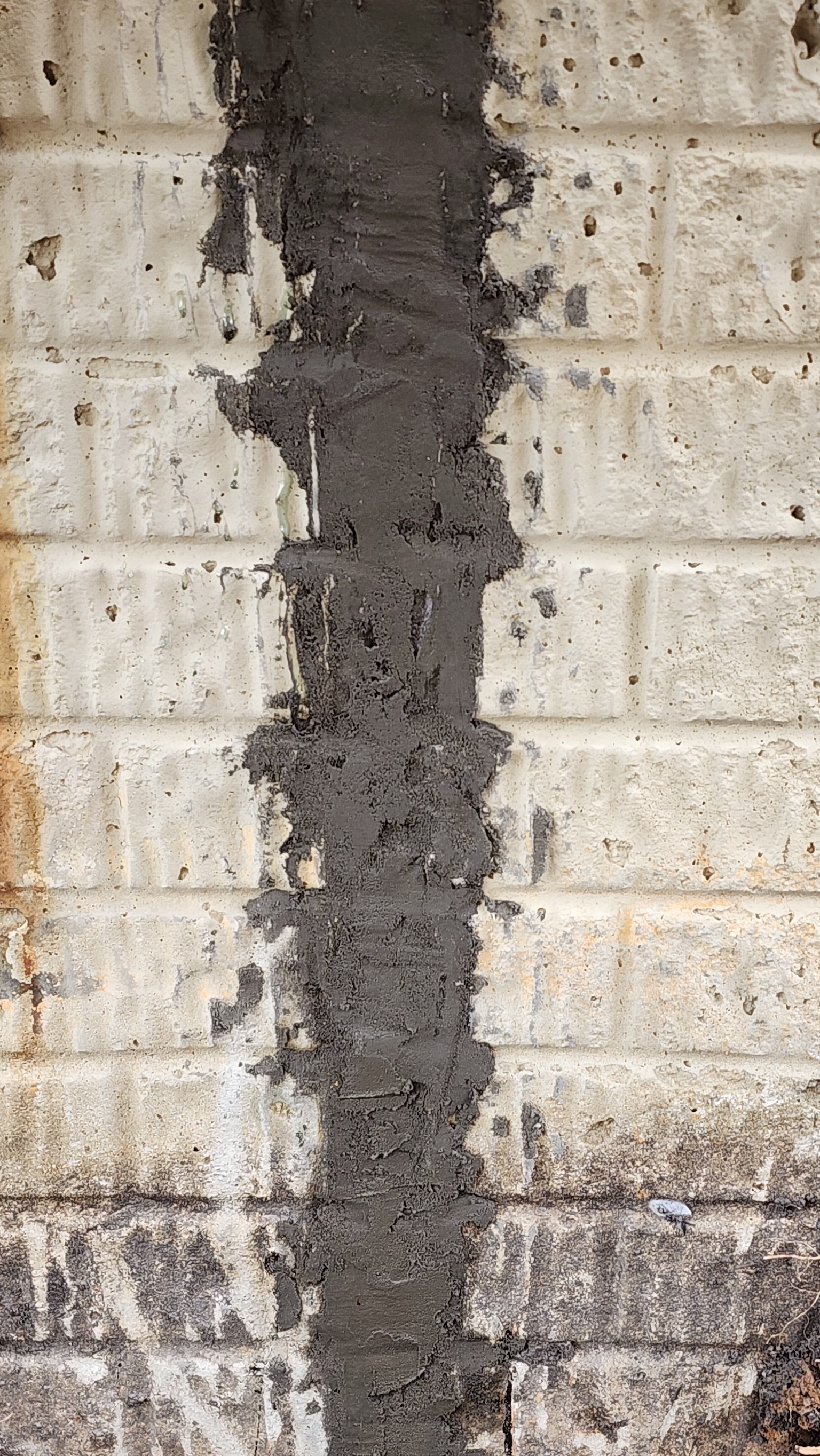

Photos From the Field
Job Site Photos
A closer look at the equipment, materials, and job site conditions involved in this kind of work.
Straight Answers
Diagonal Crack Questions from
Maryland Homeowners
Call (410) 879-3360 if you're seeing a diagonal crack in your foundation. Our inspectors will read the angle before recommending a fix.
Why does a settling foundation crack at an angle instead of straight down?
When one part of a foundation settles more than an adjacent part, the wall between the two is put under a twisting, shearing stress rather than simple downward pressure. Concrete and masonry resist that stress until they can't, and the crack that results travels diagonally, following the direction of least resistance through the material rather than straight down.
The steeper and longer the diagonal, the more differential movement it generally represents. A short, shallow diagonal crack near a window corner is a smaller settlement event than one running the full height of a wall.
Why does a diagonal crack look different in a poured concrete wall than in brick or block?
The material a wall is built from changes how the diagonal crack looks. In poured concrete, the crack tends to travel in a relatively smooth, straight diagonal line, since there's no mortar joint to redirect it. In brick or block walls, the same underlying force typically produces a stair step pattern instead, the crack following the weaker mortar joints in a jagged, stepped diagonal rather than a clean line. Same cause, different visual signature depending on what the wall is made of.
Does the length of the diagonal crack actually tell you something useful?
Yes. A short diagonal crack, often near a window or door corner, generally represents a smaller amount of differential settlement than a diagonal that runs the full height of a wall. Length and steepness are two of the clearest indicators OBW's inspectors use to gauge how much movement has already happened, separate from measuring the crack's width and any displacement.
Does every diagonal crack need structural repair, or can some just be sealed?
Not every one. If the wall itself shows signs of active structural distress alongside the crack, wall movement or spalling, carbon fiber reinforcement or wall anchors may be needed alongside crack repair. For a crack that's structurally stable, sealing it with the Artery Method is sufficient. OBW's free foundation inspection determines which situation applies before recommending anything.
What does OBW actually check on a diagonal crack?
We measure the crack's length, width, and displacement, and connect the angle and location to the broader foundation settlement pattern causing it. That reading, combined with the wall's overall condition, tells us whether sealing alone is sufficient or whether structural reinforcement needs to happen first. Backed by a written workmanship guarantee, terms vary by service, ask your inspector.
Why Oriole
Why Maryland Homeowners Trust
OBW with Diagonal Cracks
We Read the Angle, Not Just the Crack
The direction and length of a diagonal crack carries real information about settlement. OBW measures it rather than treating every crack the same.
Maryland Clay Expertise
Piedmont clay's differential settlement patterns produce predictable diagonal crack signatures. OBW has read them across every county we serve.
The Artery Method, Not Generic Epoxy
Our proprietary crack repair method was developed specifically for Maryland's clay-heavy soils, not a generic injection approach.
Family-Owned Since 1953
Founded by Frank Pirog Sr. in 1953. Amber Pirog leads the company today. Written workmanship guarantee on every repair.
Reviews
What Our Maryland Neighbors Say
A Widening Diagonal Doesn't Stop on Its Own.
Getting Started on Your
Crack Diagnosis
If the settlement causing the twist is still active, the crack keeps lengthening until it's addressed at the source.
Free Inspection
OBW measures the crack's angle, length, and displacement, and checks the wall for active distress. Free, no obligation.
Written Diagnosis & Quote
You receive a written quote specifying sealing, reinforcement, or both, based on what's actually found.
Repair & Verification
OBW's crew seals or reinforces the crack and confirms the wall is stable. Written workmanship guarantee issued upon completion.
